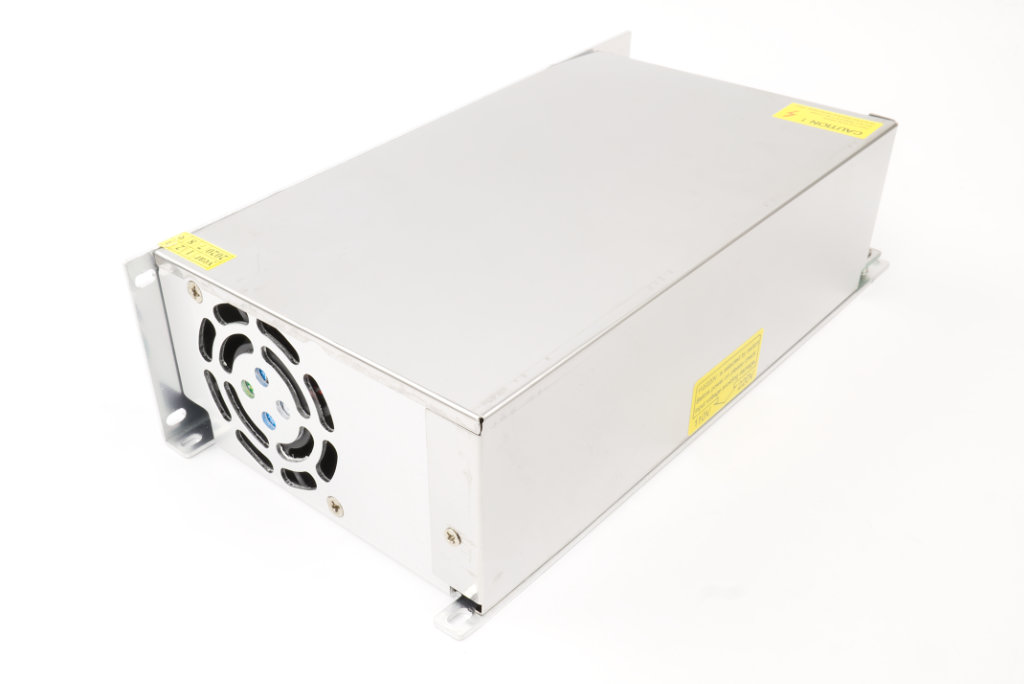

The switching power supply 24V / 400W AC/DC is for heat mats and other heating products with high conuming power. The professional unit is for build-in armatures and panels. It has high power efficiency and besides the ordinary safety features does it come with thermo-regulated ventilator with automatic speed control and autostop, with overload and over voltage protection. Very useful is the adjustable voltage output which allows the temperature adjustance with easy potentiometer turning.
Technical Datas
- Input voltage: AC 88-264V, 47/63Hz
- Output voltage: DC 24V, adjustable via potentiometer from 20-28V
- Rated current / current range / rated power: 16A / 0-16A / 400W
- Connector type / cable length: Eurostecker / 100cm
- Features: short-circuit proof, overload and over voltage protection, thermoregulated ventilator with autostop, universal AC input
- Safety standards: UL60950-1, TÜV EN60950-1, CCC GB4943 approved
- Size: 215x115x50mm (LxWxH)
Delivery content
- Switching power supply 28V / 400W
