The 80 watt "potentiometer-in-line heating control" included in the heating package comes as a flying or free-hanging housing type. It is also available with a few extensions for mounting and installation on dashboards, panels and trim, making it ideal for setting an individual heating temperature for 7V-14V battery-powered and vehicle-powered heated gloves, foot warmers, kidney belt and seat heaters. The active heat supply is continuously adjustable and provides excellent heating even in extremely cold conditions. The heater control unit can be quickly accommodated in a small space and easily attached using double-sided adhesive tape, Velcro or cable ties. The heater control's plug-in connections and its connecting cables are all waterproof. Additional safety electronics such as reverse polarity and overvoltage protection give the controller value and durability.
Heizteufel's "Potentiometer InLine Heating Control" provides stepless adjustment of an individually desired heating temperature. The power supply takes place alternatively over
7-14V battery heating packs for portable use on the road
13.8V on-board power supply for vehicle-operated use and
12.0V power supply units for connection to the domestic 220VAC socket.
The 80W housing heater control is supplied in various versions.
- IMPORTANT NOTE: Items with custom design are excluded from the right of return or exchange. (see right of withdrawal / reasons for exclusion and expiry) -.
Power input: 1 pluggable cinch connection cable AWG 18, 80cm
power output: 1 pluggable cinch connection cable AWG 18, 8cm

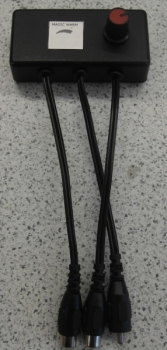

with potentiometer and operation LED in housing
Features: power-on protection, short-circuit protection, reverse polarity protection, overvoltage protection, continuously adjustable potentiometer control, water resistance of the control unit according to IP65 and of the cable connectors according to IP67
