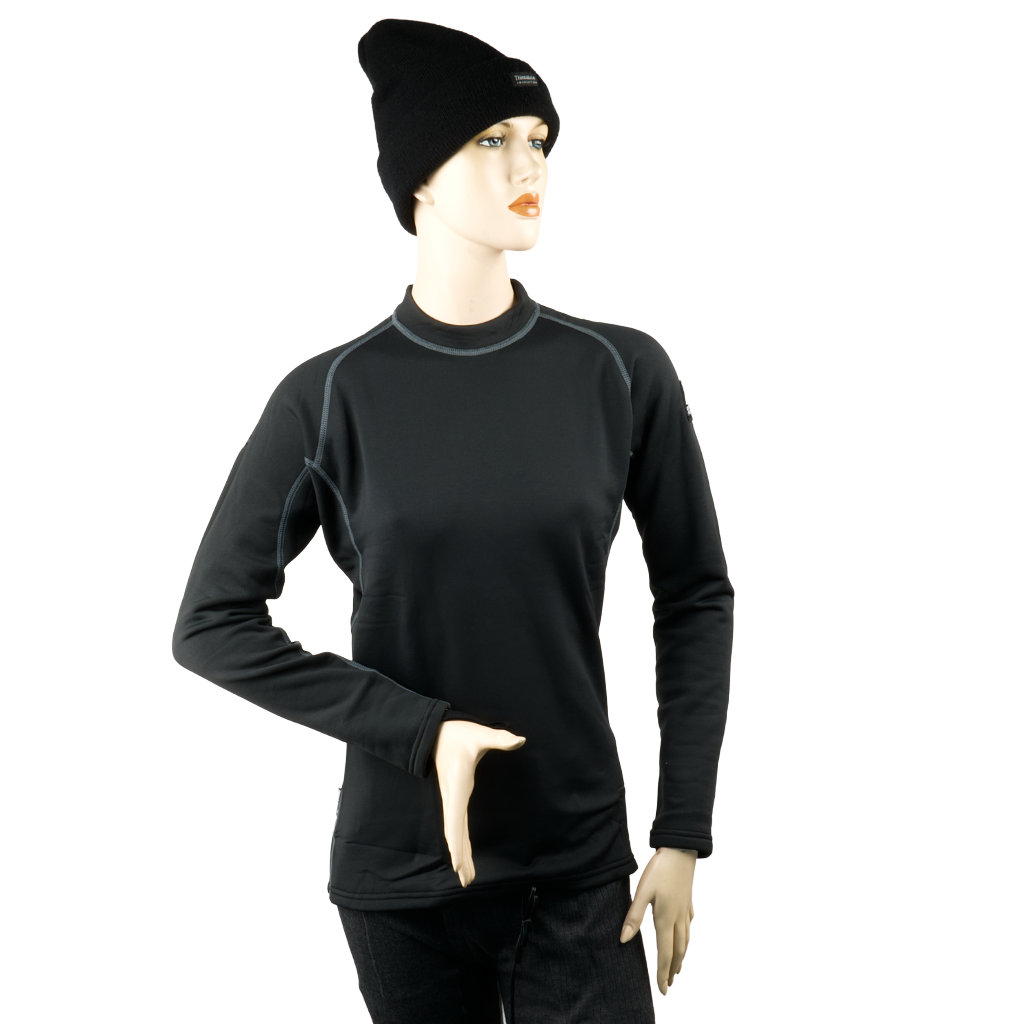

Heated Shirt BODY X With 7 Heating Zones for 15V battery packs and battery container
(chest, abdomen, base of neck, shoulder, upper arms, kidneys and lower back).
Heated shirt for divers
Waterproof® Base Layer
Body X model
It's all about keeping warm and dry. The technical fabric in BODY X has excellent moisture wicking properties. It is designed to draw moisture away from the skin to the outside through capillary action, where it easily evaporates. The combination of hollow fiber insulation and the excellent moisture transport properties creates an extremely warm and comfortable underwear.
Features
- Newly developed, highly functional fleece - material for an optimal body climate
- Power Stretch Hollow Fiber - Better insulation than its normal fiber because it is hollow and filled with air. (90% polyesther, 10% spandex)
- High pill resistant and brushed fabric is comfortable against the skin. It ensures long durability and extra comfort. (Antipilling ASTM D 3512. Class 4.0)
- Gender sizes
- Flat seams
- Pee hose bushing prepared
- Extended back
- Thumb and foot loops
- Plastic free packing
- Weight: Body X 285 g/m²
(Texts and images courtesy of Waterproof®)
Choose your variant:
a) Heizteufel offers the diving shirt with already integrated heating technology.b) Heizteufel manufactures according to your wishes the desired heating technology in your base layer. (special production)
Heating packs and diver controls worn under drysuit
The long sleeve shirt can be worn with a Heizteufel LiPo battery pack under the dry suit. From the control unit, a parallel Y-cable and 2 connecting cables, optionally 90 cm, 120 cm or 180 cm, establish the connection to the heating gloves. The corresponding cables can be found under accessories.
Furthermore, an external diver battery tank can be connected. Here a cable adapter is required to connect battery tanks and diving suit feedthroughs from Santi, BTS or Yellow Diving. We are happy to carry out conversion work on cable systems.
The Heizteufel BODY X Shirt can also be supplied with other voltage sources. For a DC 12V to 16.8V technology Heizteufel offers a variety of wiring and heating control systems that meet the versatile application requirements thanks to the latest heating technology.
The incorporation of integrated supply lines for the connection of diving heating gloves is optionally possible.
Adapter plug note: Polarity of the connection assignment can not be guaranteed. For the technology of connected foreign systems, for example Santi or Yellow Diving, we assume no liability.
Safety note: Basically, all heating products must be operated with a heating control that can be switched on and off to prevent possible overheating or other dangers. In addition, the subjectively desired heating warmth is optimally adjusted with a multi-stage, adjustable heating control.
Note on chargers: The optional 16.8V/8A and 16.8V/10A chargers are designed exclusively for 14.8V battery packs with a capacity of 10Ah and higher. For 14.8V/5Ah battery packs, it remains with a 2A charger. Of course, 10Ah battery packs can also be charged with 2A.
Custom Design
We are happy to fulfill special requests. Be it that you would like to have special body parts heated alternatively or additionally, or that cable adapters and heating controls need to be adapted for an already existing heating system. Important note: If you are unsure about the size, you can order sample shirts to try on. However, after processing with our heating technology, the shirt is excluded from exchange.
Delivery time: approx. 8 - 10 days
Das BODY X Shirt ist in folgenden Größen lieferbar:
Ladies size
3XS, XXS, XS, S, M, ML, L, XL, XXL, 3XL
Men's size
3XS, XXS, XS, S, M, ML, L, XL, XXL, 3XL
- Please match your measurements with the Waterproof® measurement charts. -
> Ladies sizes (PDF)
> Men's sizes (PDF)
Heating values and heating duration
| Voltage source | Ampere | Watts | 100% | Time | 75% | Time | 50% | Time | 25% | Time |
| 11,1V / 6Ah battery pack PRO-DIVE-TOUCH-2k (100%-75%-50%-25% of the heating power) | 3,0 A | 33 W | 60°C | 2:00 | 54°C | 2:40 | 46°C | 4:00 | 8:00 | |
| 12.0V External battery tank | 3,3 A | 39 W | 65°C | |||||||
| 12.6V Max. Operating voltage battery pack PRO and PRO/DIVE | 3,4 A | 43 W | 68°C | |||||||
| 14,8V / 5Ah battery pack X-PRO-DIVE-TOUCH-1k (100%-75%-50%-25% of the heating power) | 4,0 A | 60 W | 1:15 | 1:40 | 2:30 | 5:00 | ||||
| 16.8V Max. Operating voltage battery pack X-PRO and X-PRO/DIVE | 4,6 A | 78 W |
Provision of a personal clothing textile for the manufacture of a heating garment
Provisions of clothing are charged with 30,- Euro handling fee per order, because there is a significant additional expenditure of working time compared to our webshop stock, starting with the incoming goods inspection, a production-oriented material inspection and quality recording up to the production as well as the insurance and transport legal responsibility. For this purpose, the customer can mark the desired heating zones on the provided material, which will be taken into account when preparing the offer.
Please fill in the service order.
- IMPORTANT NOTE: Articles with custom-made are excluded from the right of return or exchange. (see right of withdrawal / reasons for exclusion and expiry) -.
- Material:
- Power Stretch hollow fiber (polyester 90% / spandex 10%).
- highly pill resistant and brushed fabric (anti-pilling ASTM D 3512. Class 4.0)
- optimal body climate
- elastic
- fast drying
- excellent moisture wicking properties
- extremely warm and comfortable
- flat seams
- color: anthracite
- Heating technology:
- Very thin and durable highly flexible Heizteufel heating wires with tear-resistant sheathing and defined spacing to avoid burns (hot spots)
- Care:
- Washable at 40°C (gentle cycle). We recommend the use of a laundry net.
- Remove the batteries before washing.
- Hang damp after washing.
- 1 x heatable long-sleeved shirt for divers with heating zones
- optional: connections for heatable gloves from Heizteufel
- No batteries included. Please choose a heating package.
- Battery operation:
- Heating package "Pro-Dive-Touch-2k
- Heating package "Pro-Dive-Touch-4k
- Heating package "XPro-Dive-Touch-1k
- Heating package "XPro-Dive-Touch-2k
- Heating package "XPro-Dive-Touch-4k
- Connection adapter for
- Santi
- Yellow Diving
- other valve grommet connectors
- 160W diver heating control "dive-inLine" (3-9021-Dive-160W)
- with magnet in velcro ring to attach to finger or light
- 30mm range due to textile and carbon material
- waterproof
- 4 heating levels: 100% - 75% - 50% - 25%
- Washable at 40°C (gentle cycle). We recommend the use of a laundry net.
- The accumulators must be removed before washing.
- Hang damp after washing.
