The high performance thermostat controller "AllStrom" is connectable to DC voltage sources from 9V - 16V and delivers up to 16A switching current at a customized, preset target temperature with a hysteresis of +/-3%.
The AllStrom thermostat is waterproof (IP67) and can be used indoors and outdoors from -50°C to +60°C. The target temperature is presettable from -40°C to 180°C. Technical thermostat applications allow heat-accurate heating of bathtubs and heating basins, plate heat exchangers and control cabinets, seat heaters and heating couches, drawer heaters, food boxes, accumulators, batteries and many others.
- IMPORTANT NOTE: Items with custom design are excluded from the right of return or exchange. (see right of withdrawal / reasons for exclusion and expiry) -.
- Input voltage: 9V-16V DC
- Output voltage: 9V-16V DC
- Switching current: 0.1A - 16A
- Switching capacity: max. 150W
- Temperature switching: -40°C - +180°C
- Hysteresis: +/- 3% (example: target temperature 37°C, switch-on temp. 36°C, switch-off temp. 38°C)
- customer specifications: temperature, cable lengths, connections, cable type
- Assembly: encapsulated in heat shrink tubing
- Power input: 1 pluggable Cinch connection cable AWG 18, 80cm
- Power output: 2 pluggable cinch connection cables AWG 18, 8cm
- sensor input: fixed sensor cable, AWG 26, 30cm
- Additional functions: Function LED, short-circuit proof, waterproof (IP67), EMC-proof
- Instruction manual

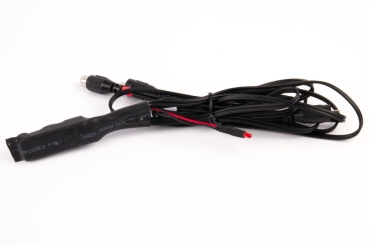

- Thermostat controller "AllStrom" ( 9V-16V DC) with fixed sensor cable
